Tires / Waste Rubber Recycling Plant TRR

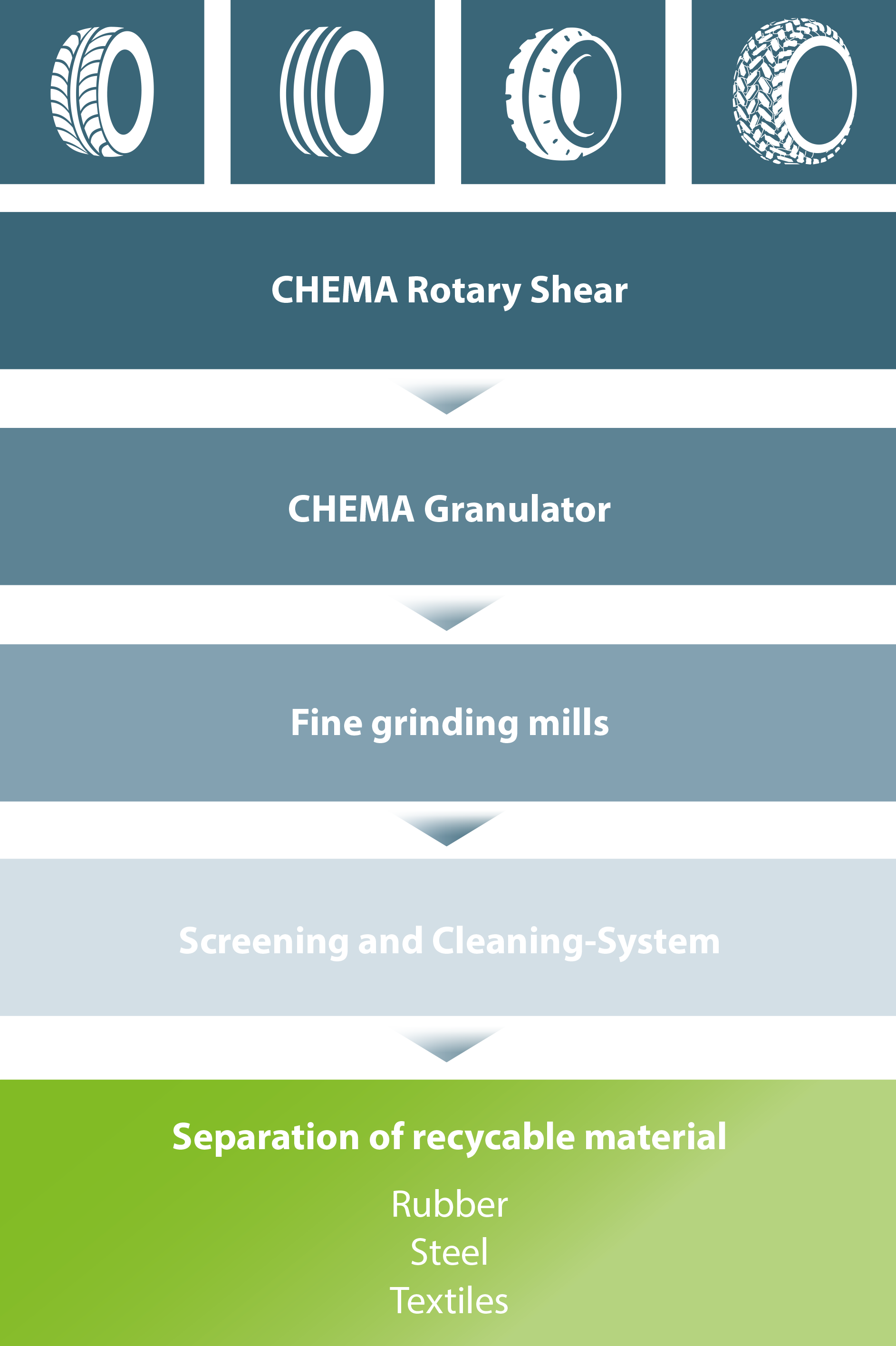

1. Primary shredding and first screening

In the first comminution stage, the used tyres are preliminarily cut by a rotor shear of type VZ (CHEMA primary shredder). This machine type is suited for cutting tyres with a diameter of up to 3 metres into pieces of about 60 x 150 mm. By the downstream disk or vibration screen, the fine fraction is then conveyed to the post-comminution system and oversize material is returned again to the rotary shear.


2. Secondary shredding and FE separation

In the second stage, the material is processed on a granulator of type NZ (CHEMA secondary shredder). Depending on the used screen type, the pre-cut tyres are comminuted to a particle size ranging between 15 – 30 mm.

Benefits of the CHEMA line – the system solution that makes the difference!

  • Outstanding equipment availability of > 90%!
  • Production of granules to supply raw materials for insulants, asphalt additives, car components or floor coverings – easy to accomplish!
  • Rough material comminution for the supply of refuse derived fuel or for volume reduction – a mere child’s play!
  • Enhanced cost effectiveness in the long run!
  • CHEMA offers high-quality machinery combined with an extensive service portfolio: efficient customer support from the initial planning, to financing, mounting, set-up and start-up right through to maintenance and repair.
  • CHEMA recycling lines can be adapted to meet the most challenging market requirements!
  • Thanks to the modular line design, CHEMA lines can be perfectly tailored to the requirements of your specific recycling process!

Items which can be recycled:

  • Truck tires
  • Car tires
  • EM tires
  • AT tires
  • OTR tires

Reusable materials can be extracted
