Vertical Crusher VB

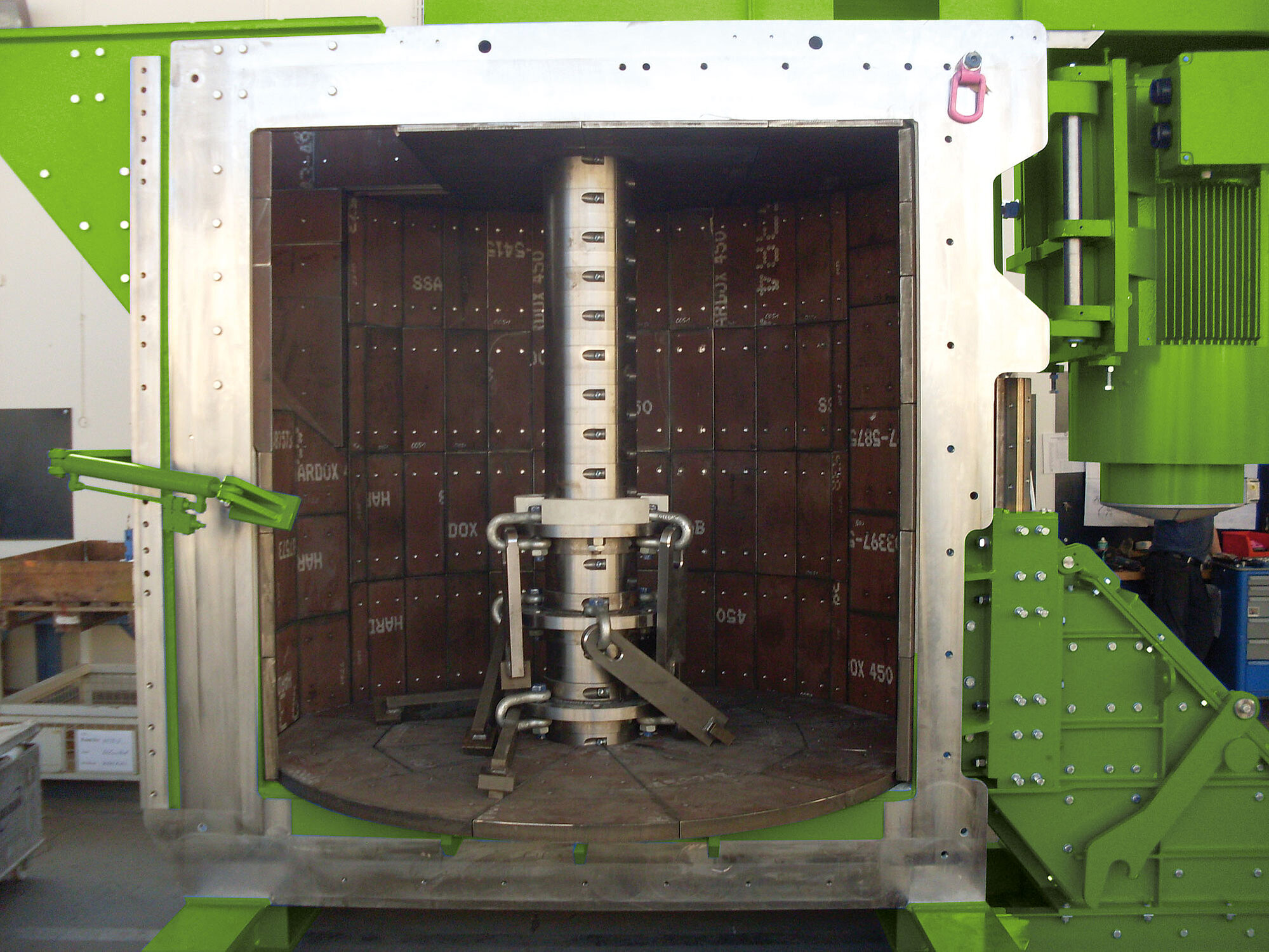

VB vertical crushers from CHEMA are comminution systems comprising a continuous impact shaft that is arranged in vertical position in the crusher chamber. The material is supplied through a feed hopper integrated into the upper housing part. Upon contact with the rapidly rotating crusher tools, the material is accelerated and comminuted by the high impact energy.

In order to accelerate the crushing process, the VB is equipped with stationary impact bars in the crushing chamber. As soon as the desired grain size is reached, the material is discharged via the lateral discharge slide. Owing to the special crushing tools developed for this machine type, both impact and shearing operations can be performed. This ensures outstanding material quality, efficient material disintegration and extremely small grain sizes.

Your advantages when using the VB

  • Optimum processing of different materials owing to variable crusher tool configuration
  • High resistance to foreign matter thanks to flexible crushing tool bearing
  • Exchangeable wear protection throughout the entire area in contact with the material
  • Continuously high throughput rate even with material that is difficult to process
  • Easy maintenance thanks to quick-change system at the crushing tools
  • Freely adjustable grain size of the output material
  • Low energy consumption thanks to high centrifugal masses at the shaft to compensate current peaks

All VB models at a glance

Type VB 220-200 – 250
Drive power (kW) 250
Rotor speed (rpm) 0 - 550
Voltage 400 V – 50 Hz
Hydraulic group 7.5 kW
Total weight approx. 37 metric tons
Number of crushing tools 2 - 18 pieces
Crushing chamber dimensions 200 cm x Ø 220 cm
